3701 mATX版
MATX,Mini,Tower,Case,Tempered,Glass,Side,Panel,Full,Side,View

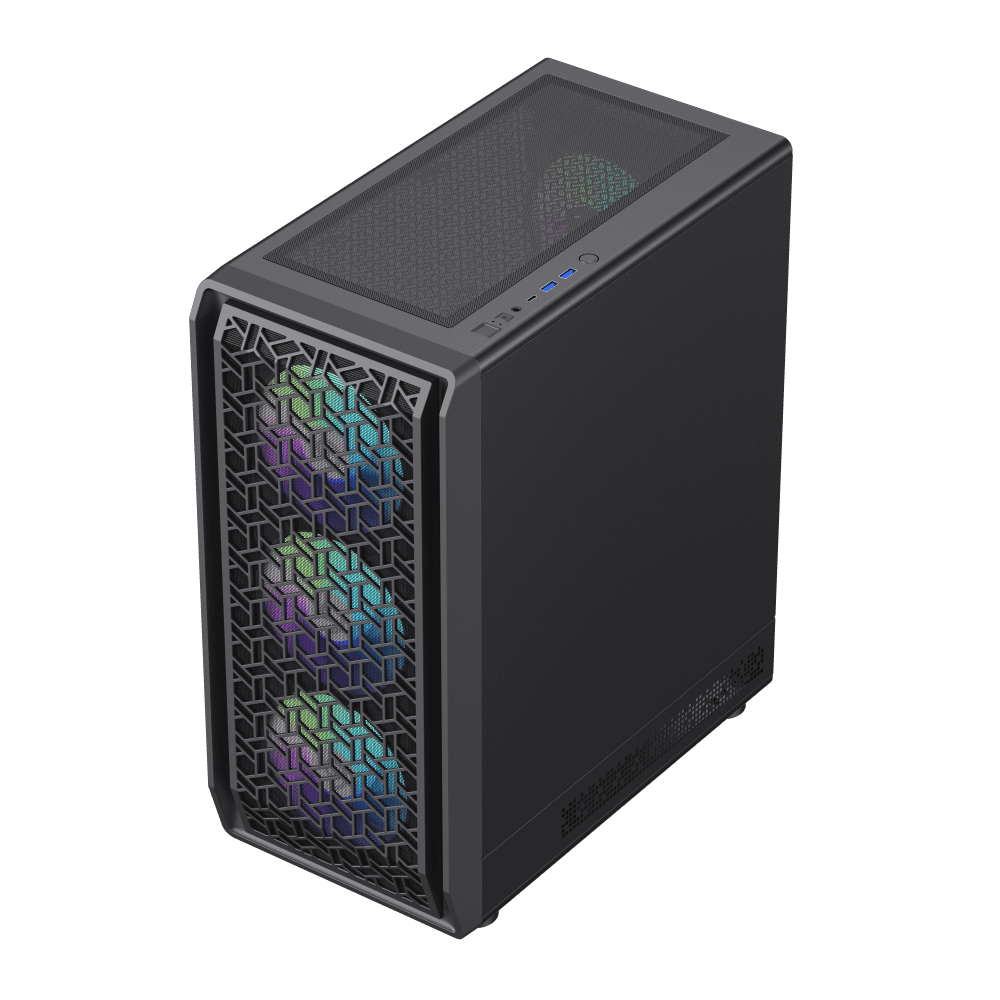

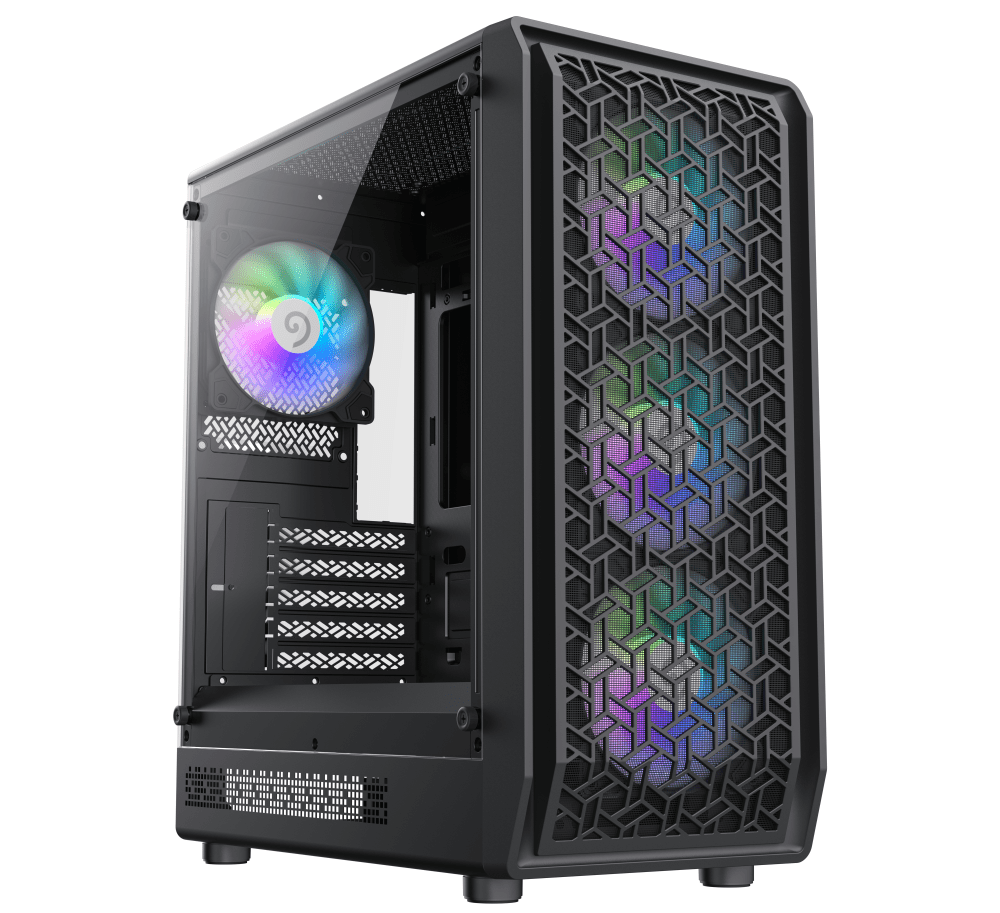

MATX Mini Tower Case, Tempered Glass Side Panel, Full Side View

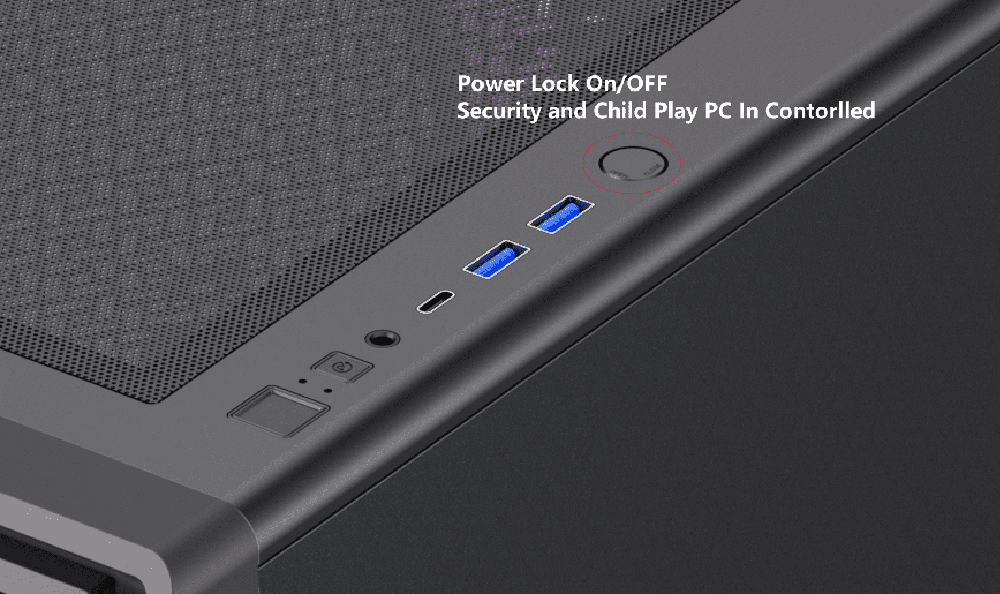

1x Power On/OFF Lock, protection for security and avoid Child play PC longer time, Consider for parent
8 ARGB Fans support : 3 x 120 mm front & 1 x 120 mm rear and 2x 120mm top ,2x120mm PSU cover

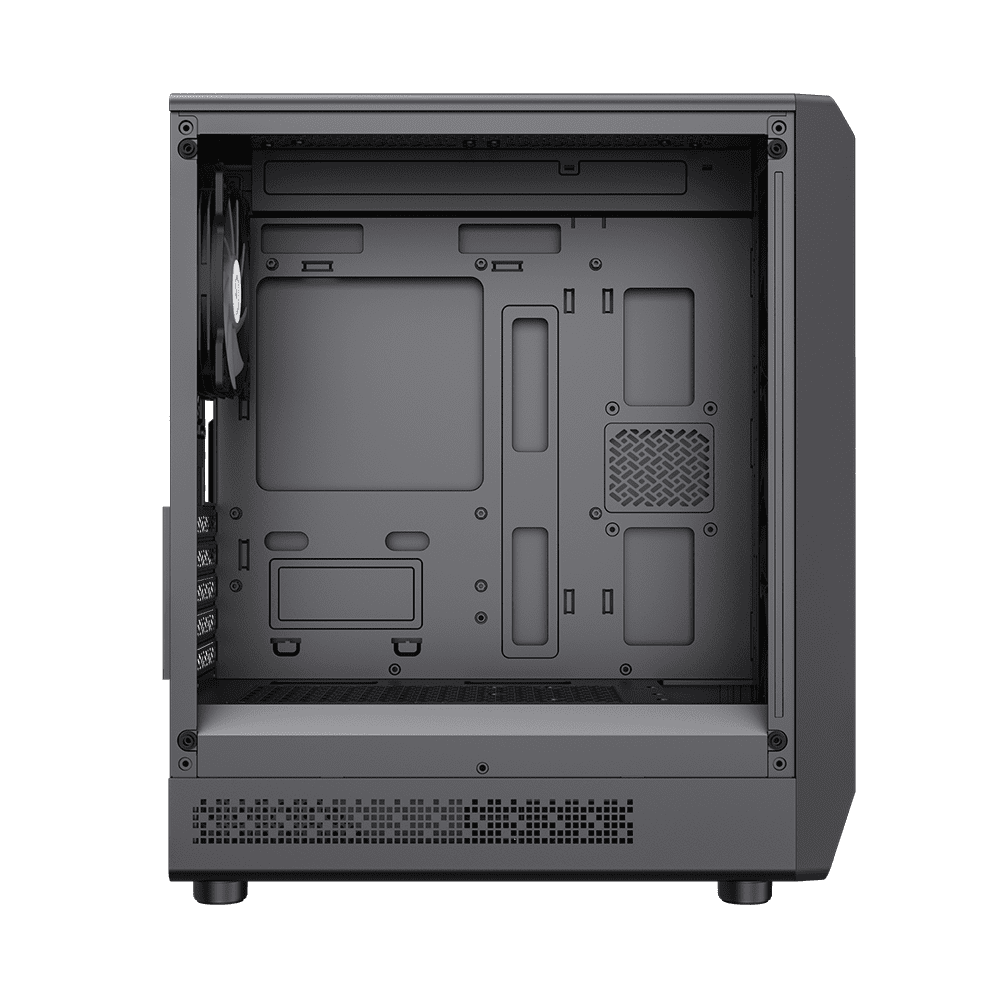

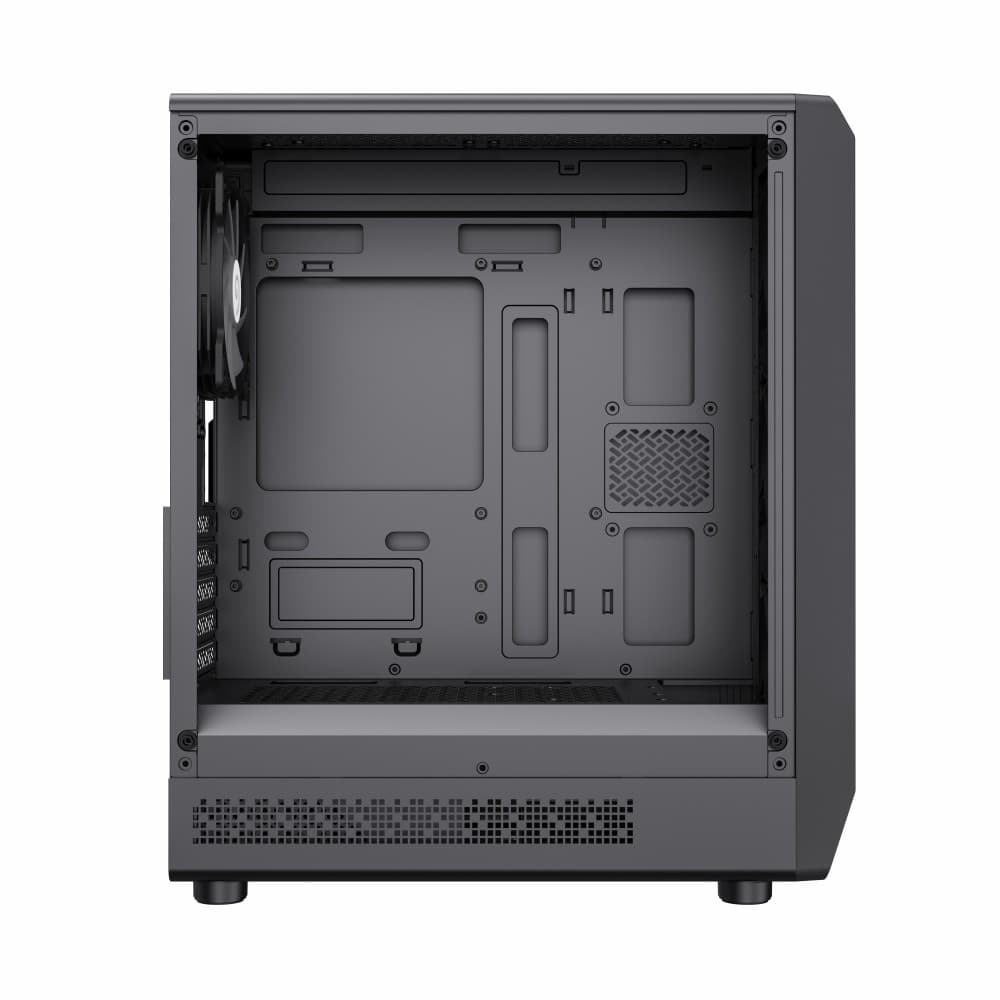

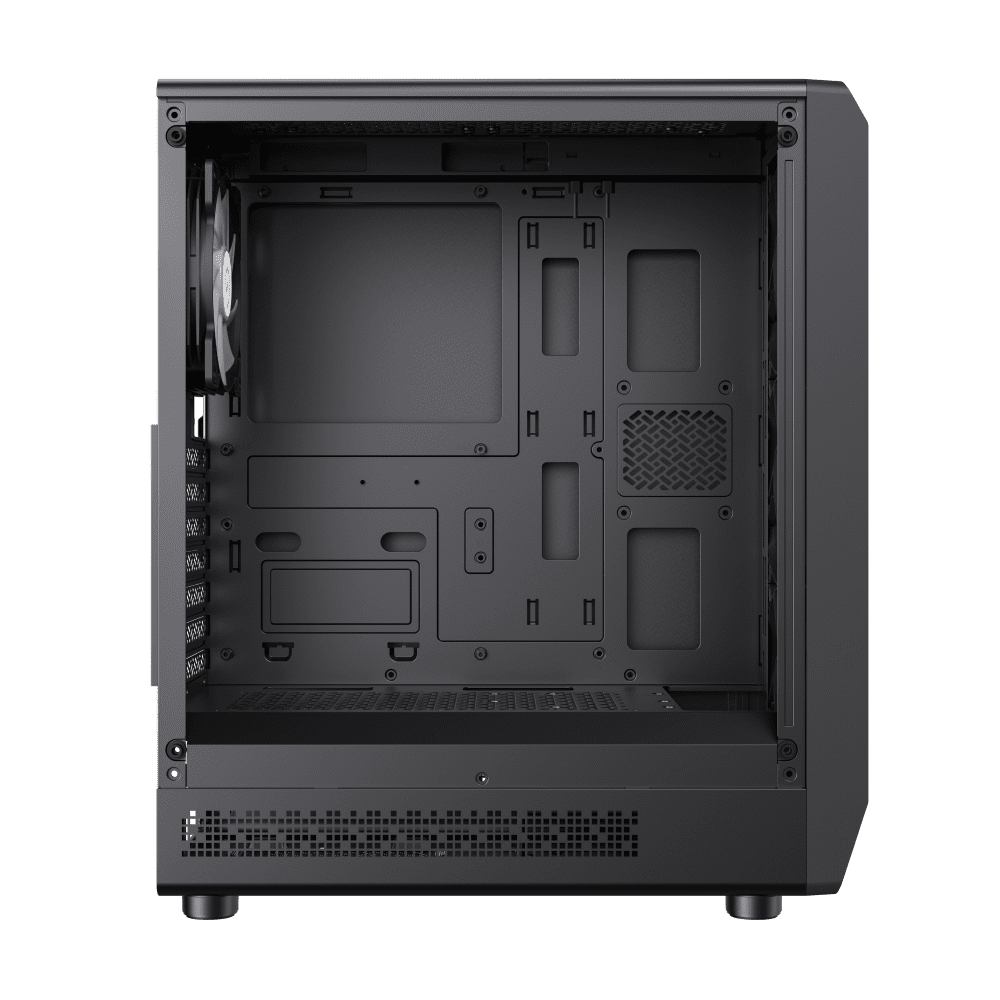

Tempered Glass Side Panel can enjoy the simple and clean white appearance without losing the gorgeous RGB effect which inside your rig.
High Efficiency Cooling Design, effectively drive the air convection to achieve awesome cooling effect for your rig

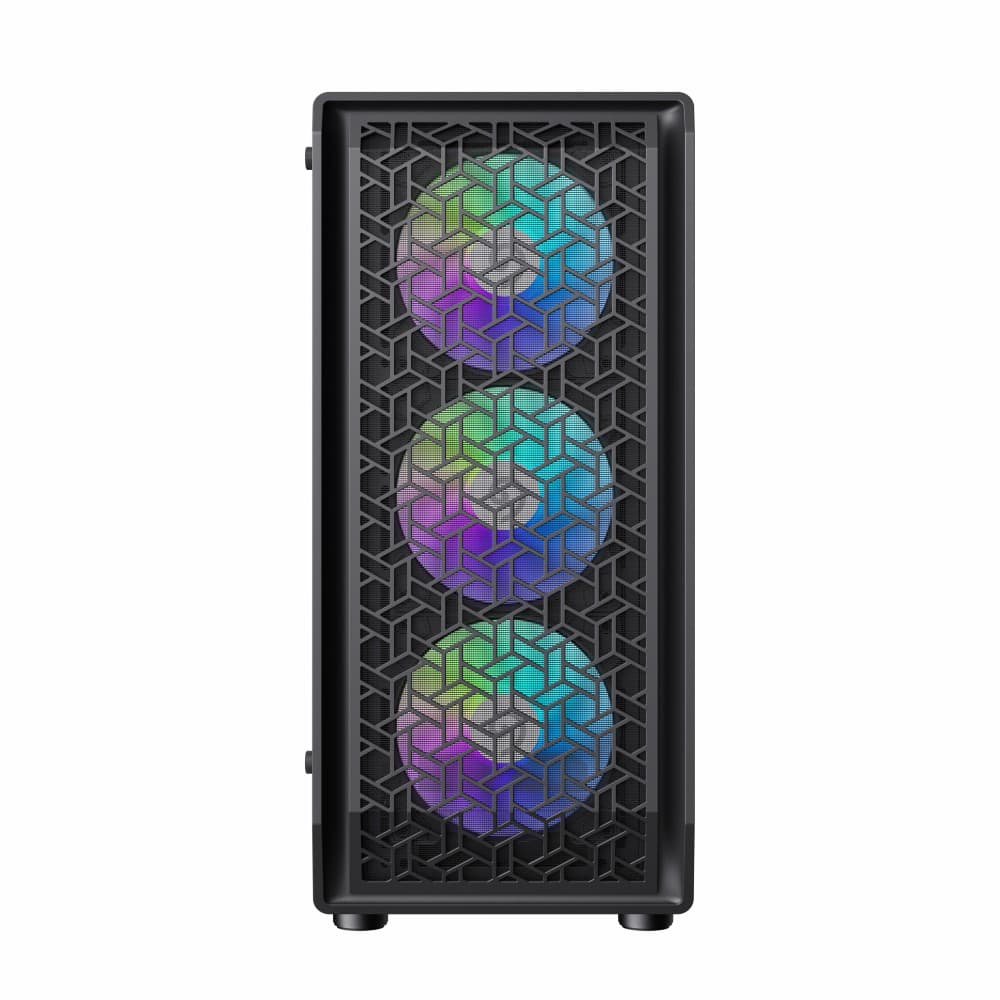

Grid Front Panel Design : The staggered grid design improves the overall appearance design sense and achieves the ultimate efficiency and beauty on the basis of keeping the heat dissipation.
MOBO Support : Micro-ATX, ITX
产品特征 产品规格



上一条 : 3801 ATX版 下一条 : 没有了！
返回列表
Form Factor (Midi, Micro, Mini , Full)Micro Mini Tower
ChassisSPCC: 0.4mm
PSU Form FactorBottom/MATX
M/B Form FactorM-ATX、ITX
Front PanelABS
Top Panelmetal cover
Side PanelLeftTempered Glass
Rightmetal cover
External Drive Bay(s)5.25" (ODD)*0
3.5"*0
Internal Drive Bay(s)3.5" (HDD)1*3.5HDD+5*2.5SSD  or  2*3.5HDD+3*2.5SSD or 3*3.5HDD+2*2.5SSD  or 2*3.5HDD+2*2.5SSD
2.5" (SSD)
I/OButtons*2
USB2.0 Port(s)*1
USB3.0 Port(s)*1
Type C*1(2.0 or GEN1 or GEN2)
HD Audio Support*1Combo Audio(CTIA)
P-Lock*1 (optional)
RGB Controller*0
Remote (IR or RF)*0
Cooling Fan  SupportFront3x120mm,2x140mm(Fan optional)
Top2x120mm ,2x140mm (Fan optional)
Rear1x120mm (Fan optional)
Left Side0
PSU Cover2x120mm (Fan optional)
Water Cooling Support
(Radiator Size)		Front120mm, 140mm,240mm,280mm.360mm
Top120mm,140mm,240mm
Rear120mm*1
Dust CoverBottom  and top cover with dust filter

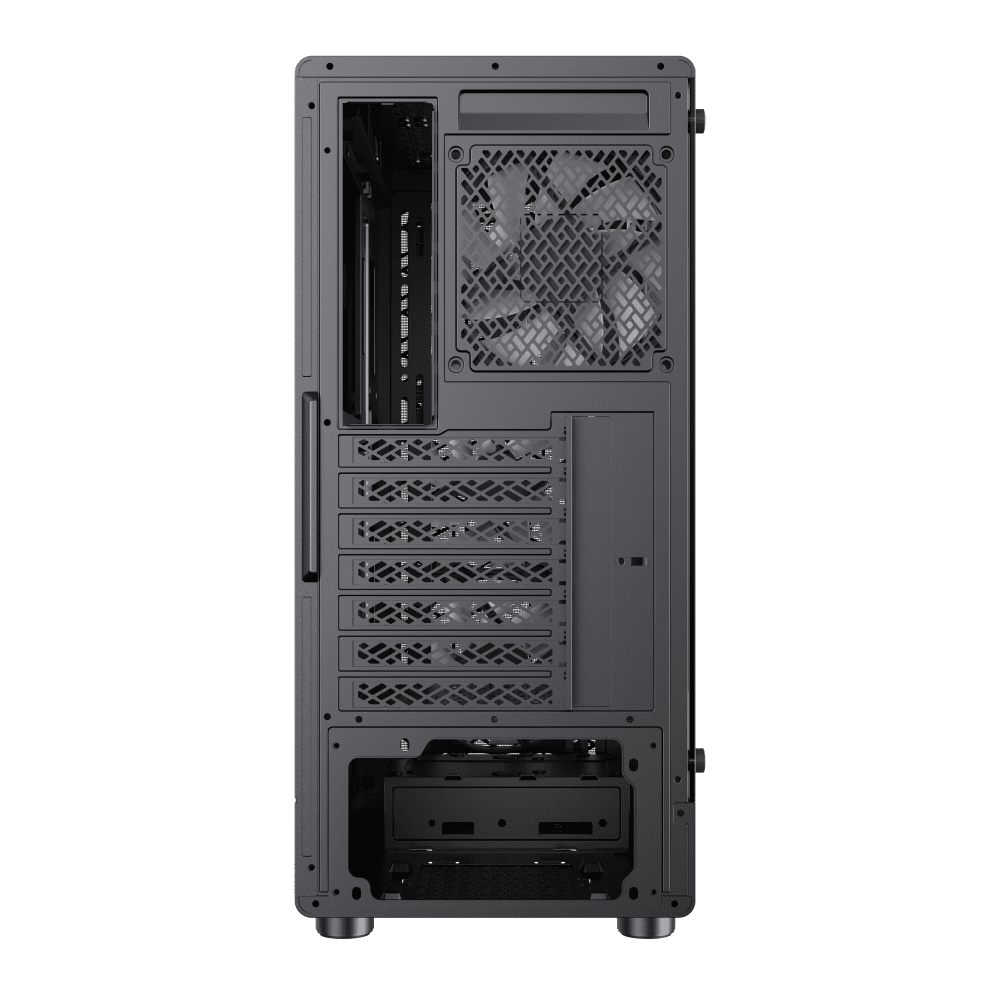

Slots*5
Carton & LogoOEM
DimensionsChassis(L)340*(W)200*(H)436mm
Full Case (inc Fascia)(L)386*(W)205*(H)449mm
Carton(L)*(W)*(H)mm
VGA Card Lengthup to 330mm
CPU Cooler Height155mm
Cable Management Depth19mm
